Car inspection system PORTAL-AUTO

GENERAL SPECIFICATIONS
Inspected object dimensions (W x H), m	2,51 х 2,9**
Throughput, vehicles/objects per hour	up to 10 and up to 250 for Portal- Auto 250
X-ray generator, kV/mA	uniquely designed X-ray generator 300/5**
Detector	U-shaped one dimensional
Image details	black and white (65 000 levels of grey) or pseudo color
Inspection sensitivity	2% up to 35 mm of steel**
Visual means	2 computers with several high resolution LCD displays, special image and data storage system with capacity to store 20 000 images
Digital image processing	Image storage, magnification up to 16 times, sharp and contrast enhancement, filtering, segmentation, X-ray image comparison
Power	built-in generator or 85 - 240VAC 50/60Hz
Power consumption, kW	5 (maximal with additional cooling system)
Operating temperature/ Humidity	– 10°C to + 50°C/up to 95%

** Can be optimized according to the customer’s needs

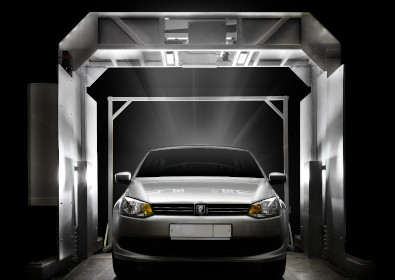

PORTAL-AUTO is a unique stationary or drive-through vehicle screening system designed for the inspection of illegal objects inside vehicles, large size pallets, etc. It can detect smuggled goods, including plastic weapons and explosives, drugs and radioactive materials. The main components of the system are an X-ray generator which emits a high energy X-ray beam and a highly sensitive U-shaped detector.

The dual energy technology (optional) provides automatic colour coding of materials according to their effective atomic numbers.

The PORTAL-AUTO system combines high penetration and low radiation dosage.

The system can be integrated not only in a temperature controlled permanent or solid built infrastructure but uniquely in a 20ft container or a tent, and is intended to operate 24/7.

The system automatically inspects vehicles without driver placed on a vehicle moving system. Images are transmitted to the remote control room for further examination. Due to its mobility, if set up in a 20ft. container, PORTAL-AUTO is ideally suited to work at border crossings, security checkpoints, as well as at seaports and airports, security sensitive areas such as goverment/commercial sites, military and law enforcement HQs/structures.

THE SYSTEM LAYOUT

Temperature controlled environment*
X-ray generator
U-shaped detector unit

Data collection and processing systems
Vehicle moving system*

not applicable to Portal-Auto 250
